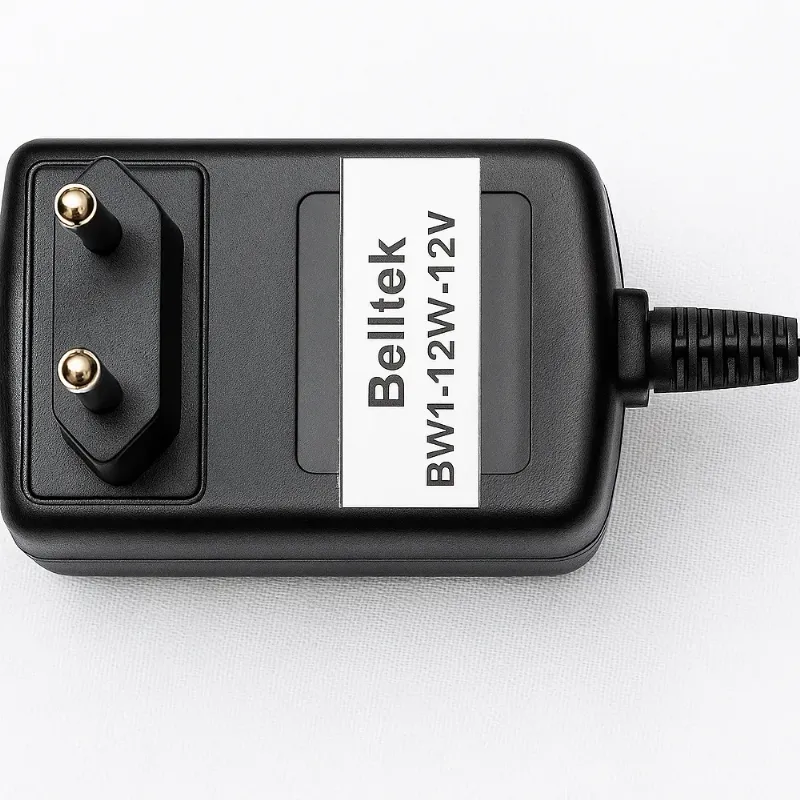

BW1-12W-12V
| Min. Qty | Max. Qty | Price Range |
|---|---|---|
| 1 | 5 | 185 /- |
| 6 | 100 | 160 /- |
| 101 | 1000 | 148 /- |
| 1001 | 5000 | 138 /- |
Output Voltage / Current : 12V @ 1A
Output Load Regulation: 11.6V - 12.6VDC
Efficiency: >75% at Full Load
Output Ripple: < 250mV
Output Over Current Limit Point: <1.5A
Output Connector Type: DC Jack
Output Indication: Power Ok Indicator
Input voltage Range: 100-300VAC
Line Regulations: <+/- 5%
Input Current: 400mA Rms
Input Frequency: 47Hz - 63 Hz
Mounting Type: Wall Adapter
High Frequency Switching Technology SMPS
High Reliability, Compact Size, Light Weight

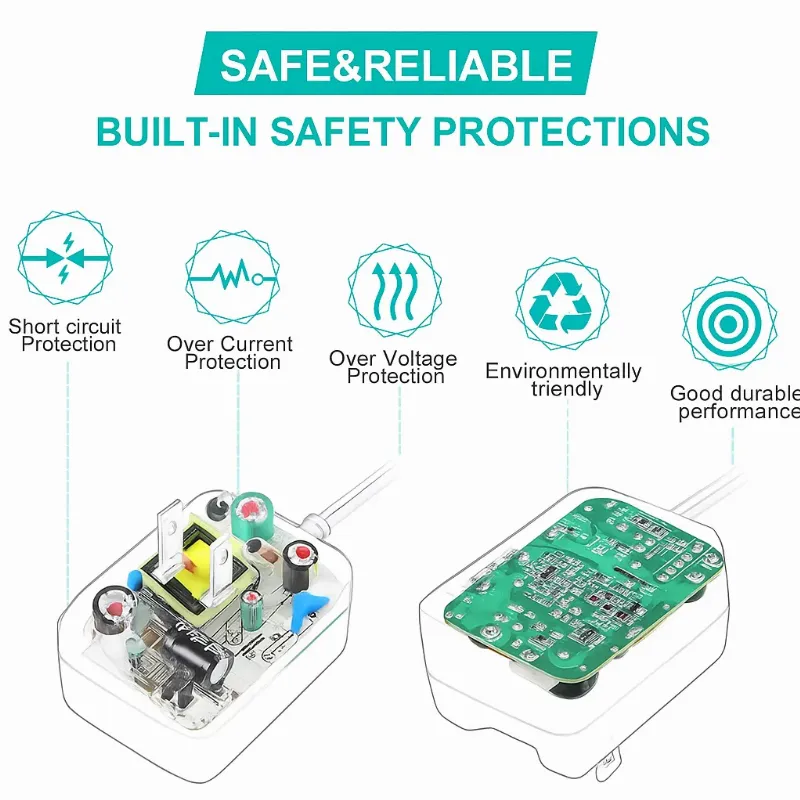

Protections: Output Short Circuit, Output Over Voltage, Over Temperature, Output Overload
Warranty: 1 Year Manufacturer
